Exporting a calibration profile for Fluid Audio Image 2 speakers

Zane



Export your SoundID Reference calibration profile and run it on the Fluid Audio Image 2 speakers for the lowest possible latency and highest convenience without using the plugin or standalone app.



In this article:

    1. Profile export availability and requirements
    2. Measuring a stereo speaker configuration
    3. Exporting the calibration profile
    4. Uploading the calibration profile to Fluid Audio Image 2 speakers
    5. What's included in the profile export?





Profile export availability and requirements

With the SoundID Reference and Fluid Audio integration, you can export calibration profiles and import them straight onto your Fluid Audio Image 2 speakers.



SoundID Reference export options and license requirements:



Fluid Audio hardware and license requirements:



Measuring a stereo speaker configuration

Before the speaker measurement process, we recommend making sure the following steps have been addressed:

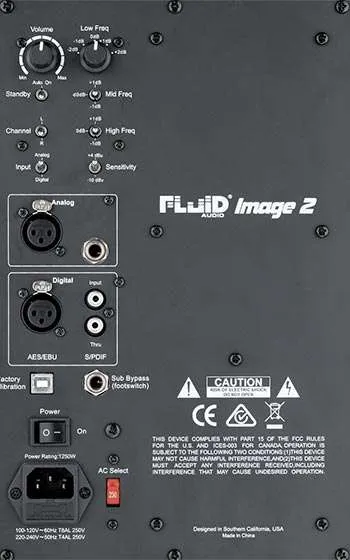

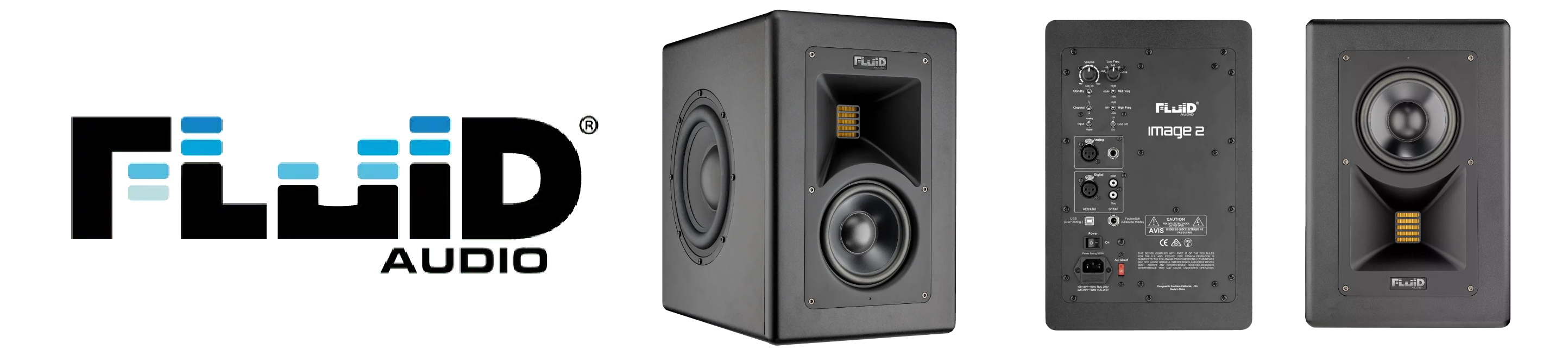

  • With the monitor’s power off, connect the left & right audio outputs of your interface to the left & right XLR inputs of the monitors.
  • Position the Input switch to Analog (up position in photo) & position the other room switches to the zero (center) position.
  • IMPORTANT: Make sure the output volume level on your audio interface is turned down.
  • Power on your Image 2 monitors & check that you have audio when connected.
  • The Image 2 DSP internal audio output sample rate is 192kHz / 24 bit, so you can set your audio interface to any sample rate up to 192kHz.
  • You are now ready to begin the measure, export, and upload process.
  • A measuring microphone is needed to perform the measurements





To begin, launch the SoundID Reference Measure app. The 5-stage measurement process will take around 20-30 min to complete, depending on the complexity of your setup configuration.

If you're having difficulties following the process, or if you're encountering any warnings, we recommend following this guide: Stereo speaker measurement troubleshooting guide





Exporting a calibration profile

With your speaker calibration profile saved, export it for your Image 2 speakers:

  1. Open the SoundID Reference standalone app and load your calibration profile (create an output preset).

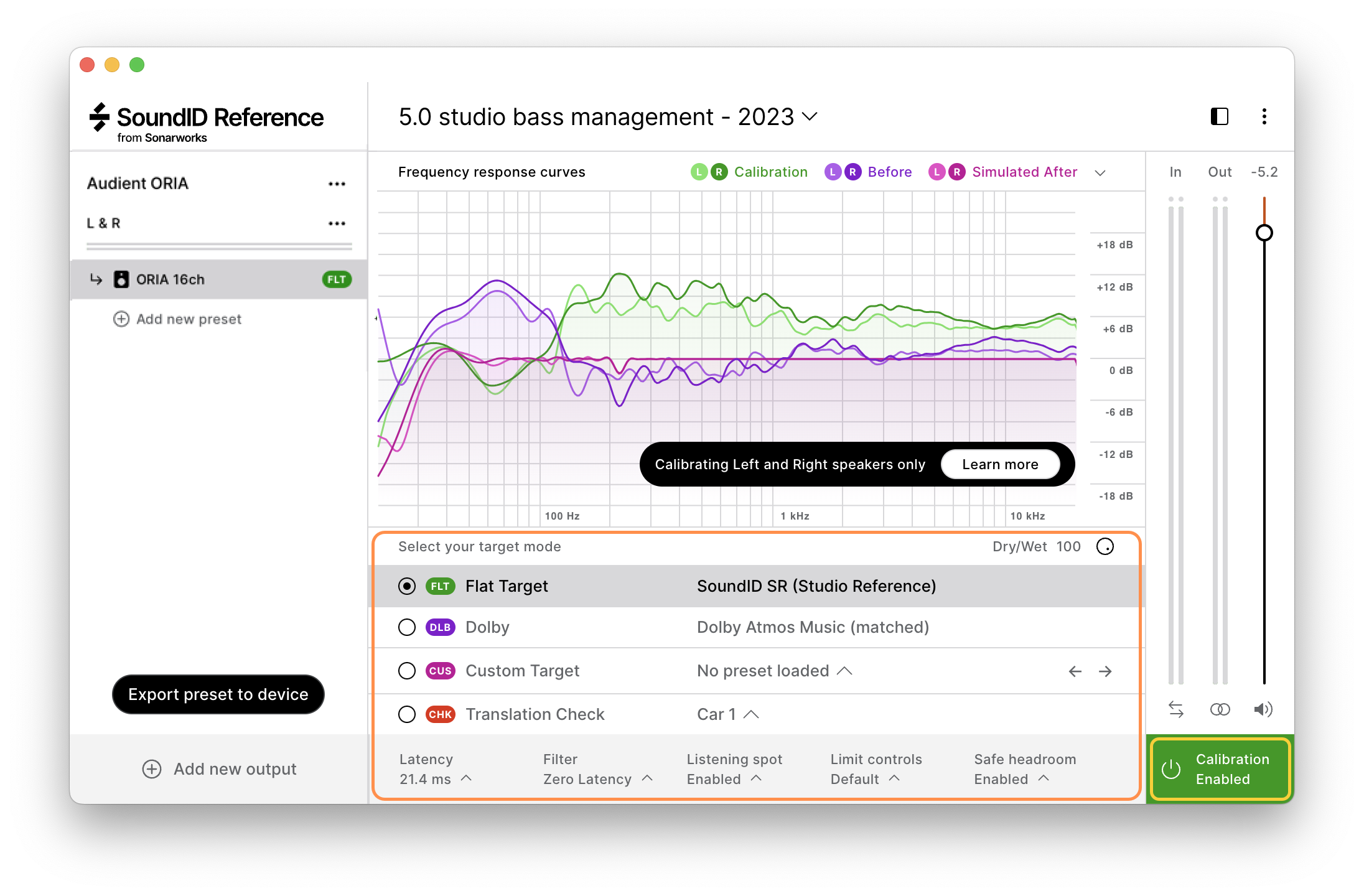

  2. Adjust the preset's DSP settings (Target Mode, Listening Spot, Dry/Wet and others). These settings are included in the export. Make sure Calibration is Enabled before you export.
  3. In the left sidebar, go to your preset and click ⋯ (the three-dot menu) > Export.

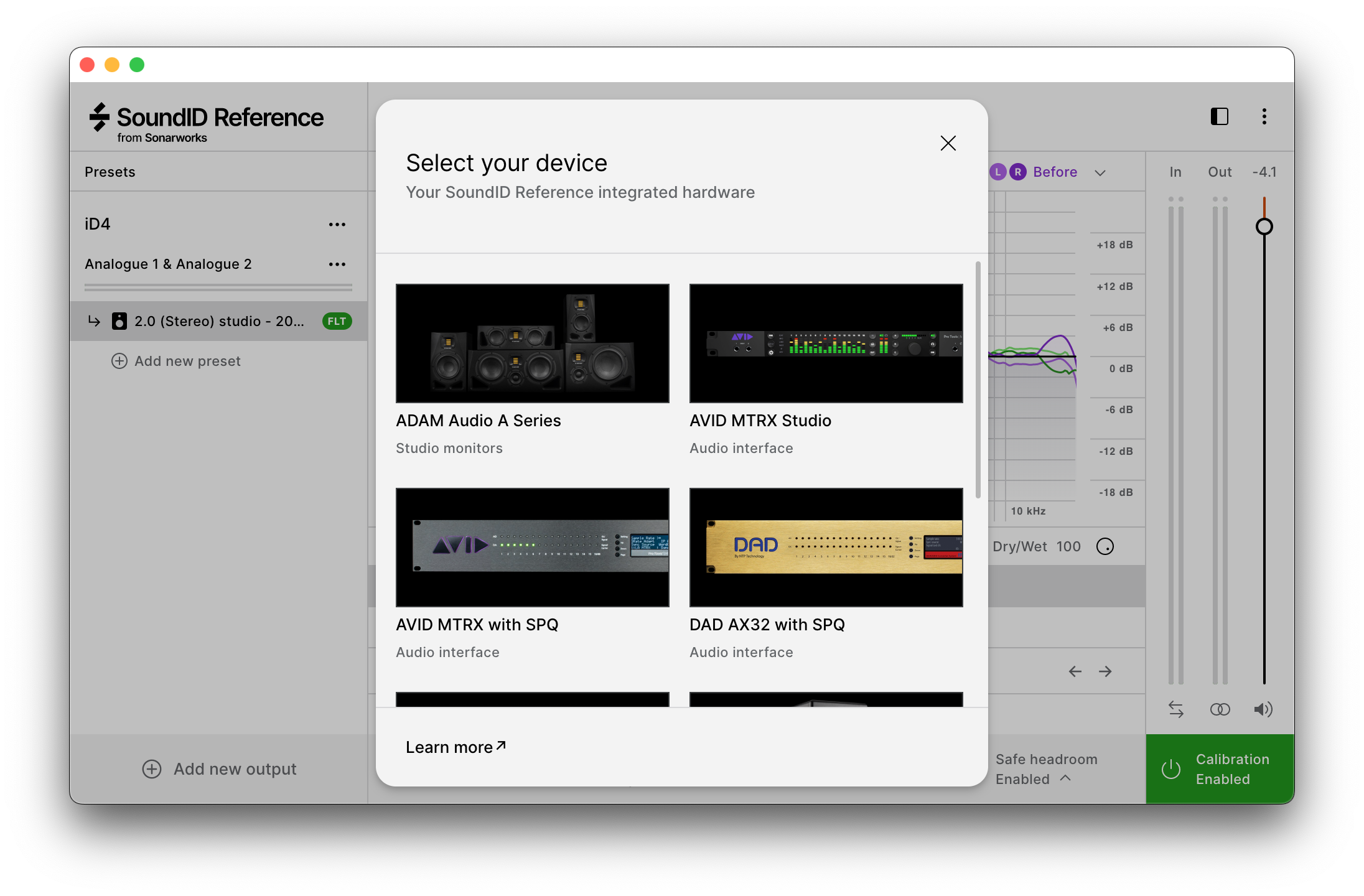

  4. In Select your device, scroll down and select Fluid Audio.
  5. Follow the export steps in the app to save the calibration profile file. You upload this file to your speakers in the next section.

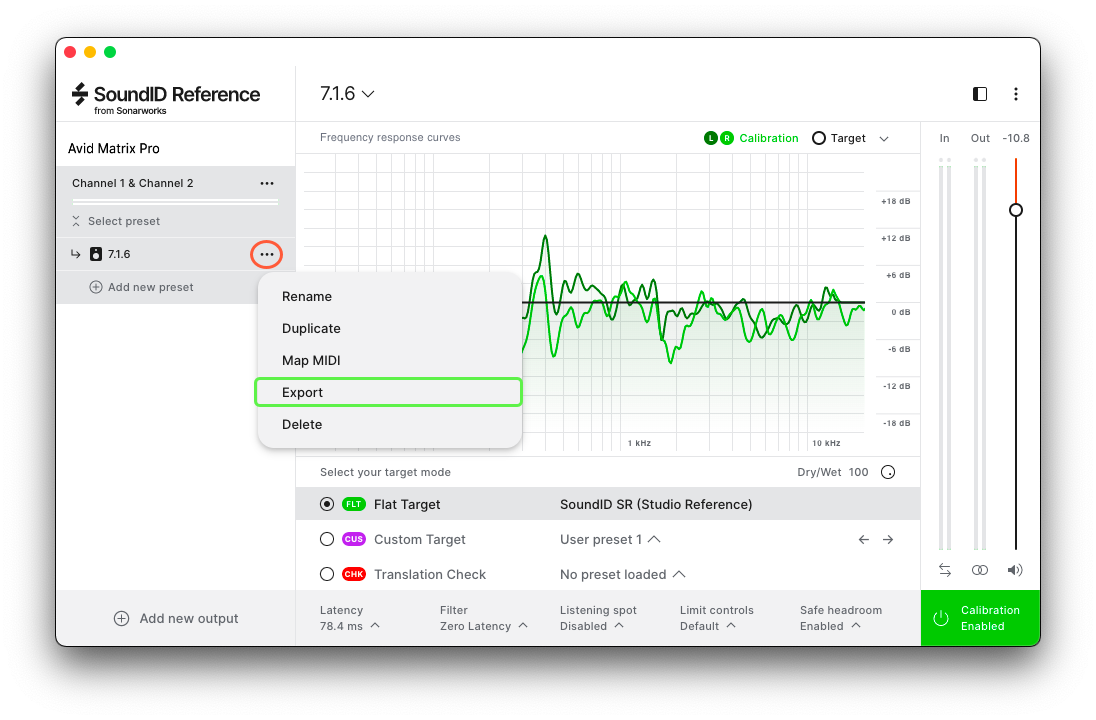

Preset three-dot menu with Export selected



Select your device window with Fluid Audio selected



Note: For details on what the export includes, see What's included in the profile export?





Uploading the calibration profile to Fluid Audio Image 2 speakers

Once you've exported the calibration profile, upload it to your Image 2 speakers:

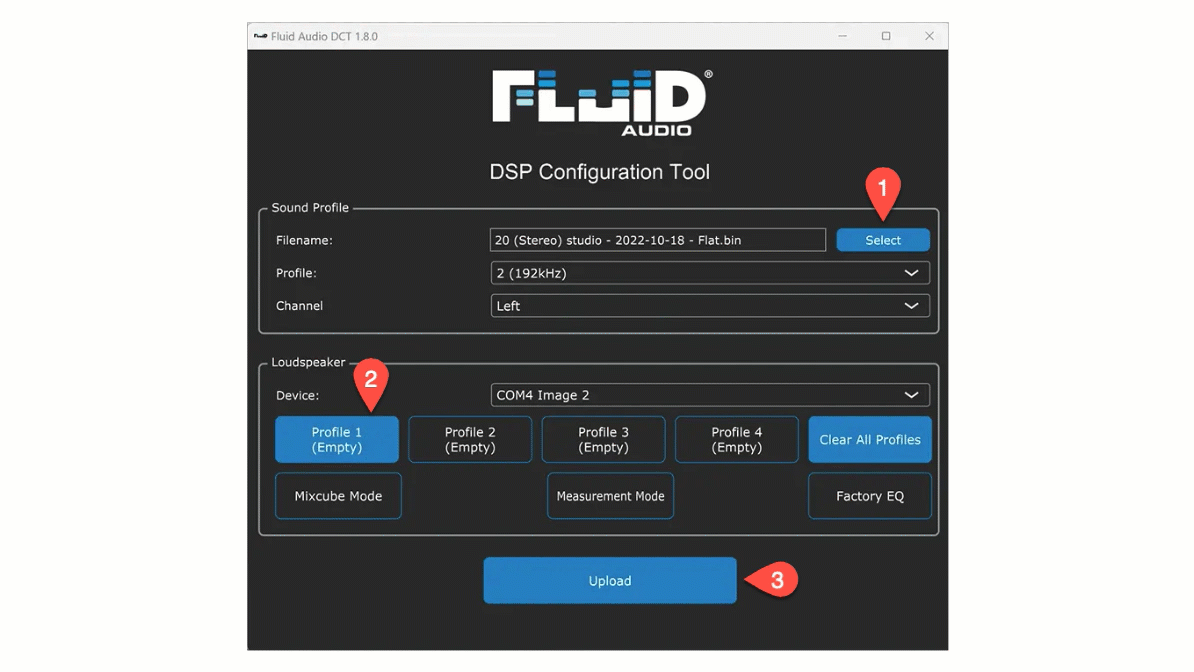

  1. Launch Fluid Audio DCT tool
  2. Click on the 'Select' button to find the calibration profile you have exported. Now press the Filename.
  3. When the calibration file is loaded, DCT will automatically populate the Profile field to 192kHz and Channel field to Left (the 192kHz cannot be changed, but the Left can be changed to Right, depending on which speaker you start with). Choose which Profile you want to install to (it will turn blue when selected) and press Upload to begin uploading the calibration file to your Image 2 monitor.
  4. Once you have pressed Upload, DCT shows the progress. This should only take a few seconds.








What's included in the profile export?

The exported calibration profile will include the following information and DSP settings adjustments by default:



The exported calibration profile will not include the following information (your target device may use its own processing solutions for these DSP features):

  • Output Gain: the gain control will take place on the integration device.
  • Filter Type: processing will take place on the integration device, using its own filter solution.
  • Safe Headroom: the values are exported in the profile, but might be applied differently on different integration devices.



Note: Make sure that Calibration is Enabled before exporting the profile so that Calibration and all DSP settings are successfully included in the export.
