Exporting a calibration profile for Wayne Jones AUDIO Studio Monitors


Export your SoundID Reference calibration profile and run it on the Wayne Jones AUDIO Studio monitors for the lowest possible latency and highest convenience without using the plugin or standalone app.



In this article:



Profile export availability and requirements

With the SoundID Reference and Wayne Jones AUDIO Studio Monitors integration, you can export calibration profiles and import them straight onto your Wayne Jones AUDIO Studio Monitors *.



* Wayne Jones AUDIO Studio Monitors purchased before Nov 05, 2021, refer to our article here



SoundID Reference export options and license requirements:

Are my existing Jones-Scanlon Studio Monitors compatible with the SoundID Reference integration?

NOTE! Multichannel profile export is not available with the SoundID Reference legacy versions.



Wayne Jones AUDIO hardware and license requirements:



IMPORTANT! The export feature is available for both Mac and PC, however, profile upload into the speakers is currently possible only on PC devices (Windows).



Measuring a stereo speaker configuration

Before the speaker measurement process, we recommend taking a look into the following options and making sure they have been addressed:



Screenshot 2023-01-13 at 16.31.09.png

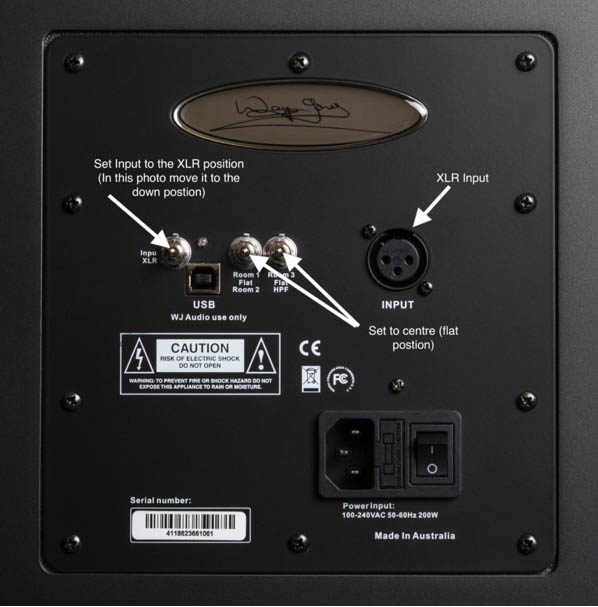

  • With the monitors off, please connect the left & right audio outputs of your interface to the left & right XLR inputs of the monitors
  • Position the Input switch to XLR (down position in photo) & position the other room switches to the center position (flat)
  • Make sure the output volume level on your audio interface is turned down
  • Power on your Wayne Jones Audio monitors & check that you have audio when connected
  • Wayne Jones Audio Monitors DSP internal audio output sample rate is 192kHz 24 bit
  • You can set your audio interface output to any sample rate up to 192kHz
  • Wayne Jones Audio recommends sample rates of 96kHz or 192kHz



To begin, launch the SoundID Reference Measure app. The 5-stage measurement process will take around 20-30 min to complete, depending on the complexity of your setup configuration:

  1. Hardware setup -selecting the stereo configuration and the audio interface you're working with, using test tones to verify the output channels, adjusting the microphone gain
  2. Listening spot - the front L and R speakers will be measured to determine the distance and noise floor, and the listening spot will be established. You will be able to review and fine-tune the dimensions of your listening area
  3. Volume matching - manual and automatic adjustment options will be provided for adjusting individual channel volume for matching levels at the listening spot
  4. Room response - a series of measurements (37 in total) will now take place to measure the frequency response of your speakers and room
  5. Results - Once the entire measurement process is complete, the results will be displayed - you can observe the frequency response of your setup in detail for the first time



If you're having difficulties following the process, or if you're encountering any warnings, we recommend following this guide: Stereo speaker measurement troubleshooting guide





Exporting a calibration profile

With the speaker calibration profile saved and ready to go, proceed as follows:

  1. Launch SoundID Reference standalone app
  2. Load your calibration profile (create an output preset)
  3. Adjust the preset DSP settings (Target Curve, Listening Spot, Dry/Wet, etc.) - these settings adjustments will also be included in the profile export.
    Note: Make sure Calibration is Enabled before exporting

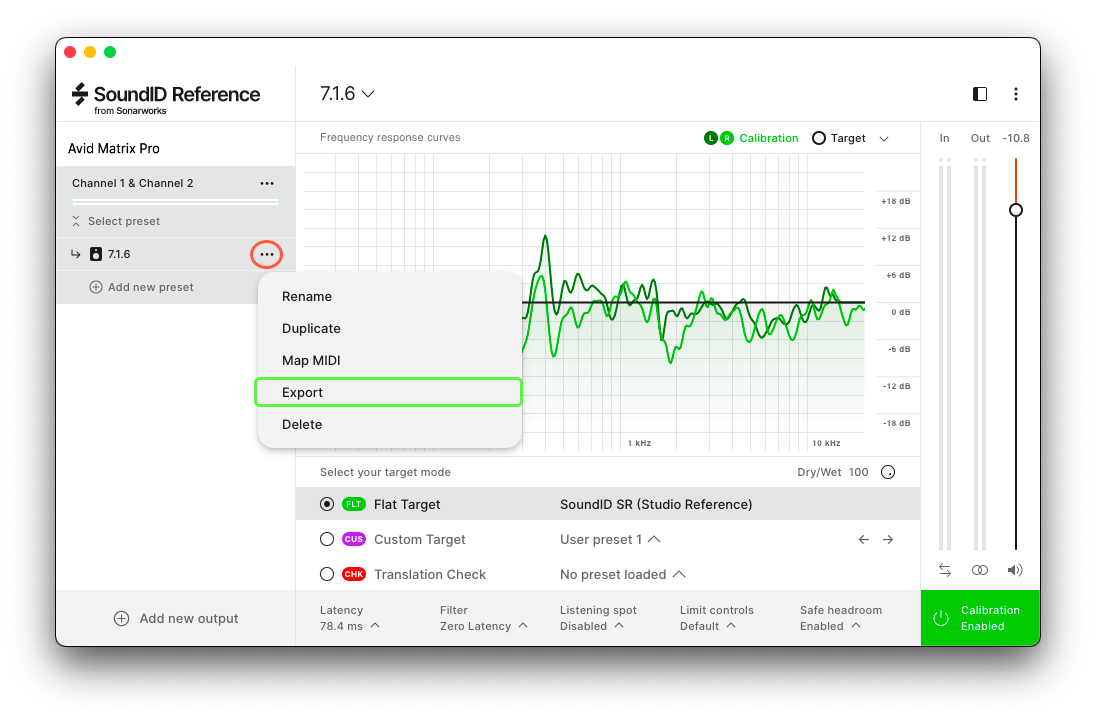

  4. Navigate to your preset in the left sidebar and click on '' (the three-dot menu) > Export

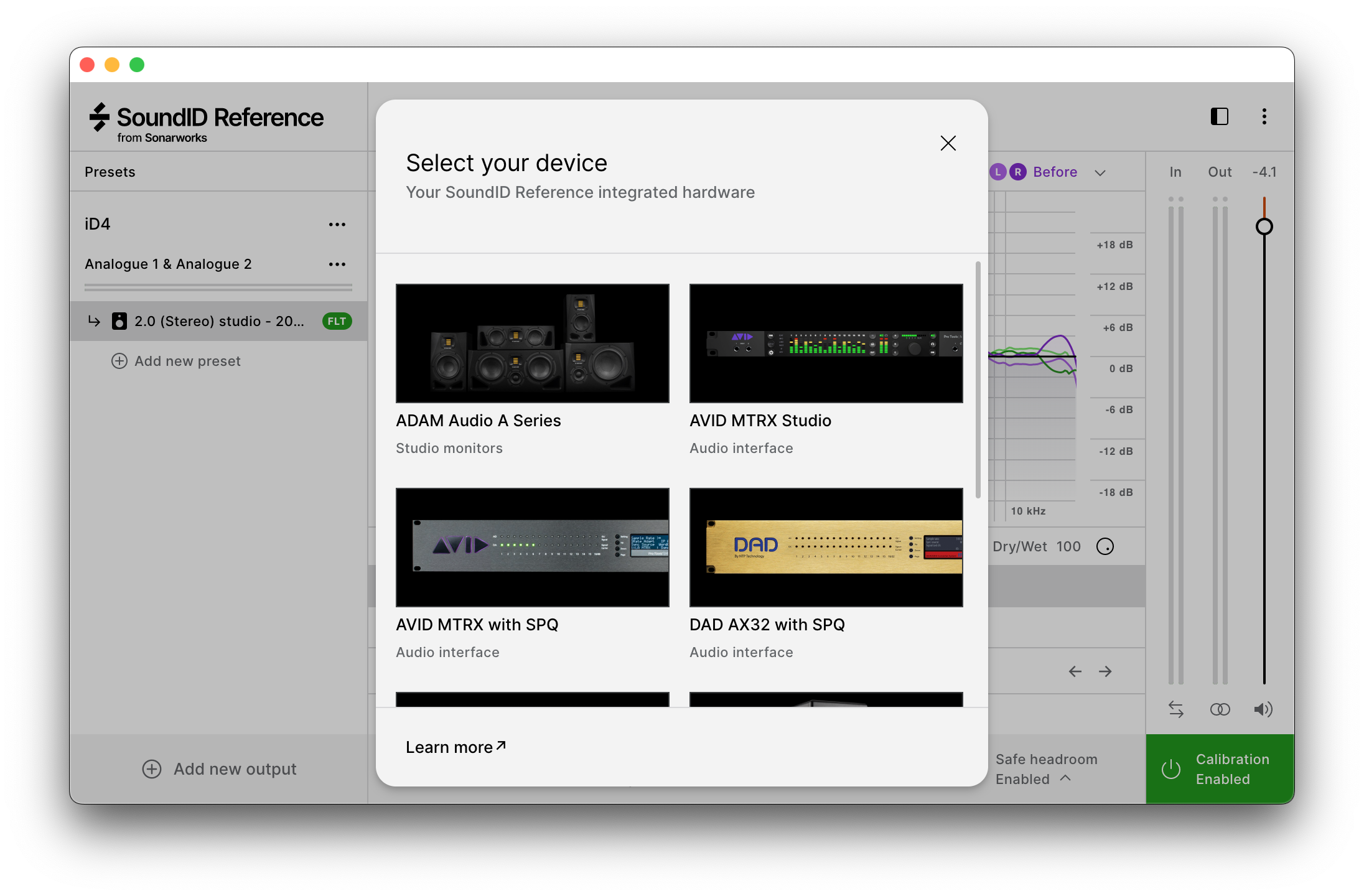

  5. Select your export target device, and proceed with the export instructions in the app



Note: For exact details on what's included in the profile export, see the What's included in the profile export? section below.



Export option.png






By default, the exported calibration profile (a .bin file) will be saved in the following directory:

  • Windows:
    AppData\Local\Sonarworks\SoundID Reference\Sonarworks Projects\Exported Presets
  • macOS:
    /Library/Application Support/Sonarworks/Sonarworks Projects/Exported Presets







Note: For macOS users: since version 5.4.0 (Oct 18, 2022) the "Sonarworks" folder has been moved from ~/Library/Sonarworks to ~/Library/Application Support/Sonarworks

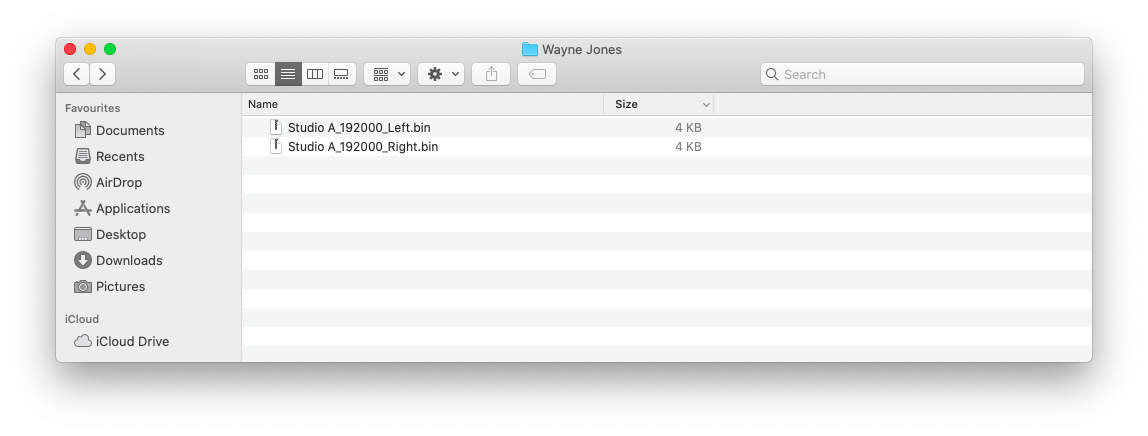

The calibration profile will be exported as two separate .bin files - one for the right monitor, one for the left monitor.


A successful profile export will generate two .bin files which will include:

  • Calibration curve: the selected speaker calibration curve data
  • Target curve: the selected target mode, with all of your custom settings applied
  • Dry/Wet: the level of calibration applied
  • Limit Controls: frequency range affected by calibration



Is everything being processed from the exported calibration files?

No, Wayne Jones AUDIO will use its own processing solution for these features:

  • Filter type: processing will take place on the Wayne Jones AUDIO Studio Monitors, using their own IIR filter solution
  • Safe headroom: the values are exported in the profile, and applied via functionality on the Wayne Jones AUDIO Monitors
  • Listening spot - not included



Importing the profile into the Wayne Jones AUDIO Studio Monitors interface

  1. Install the app on your Windows-based computer

  2. Open the app, select Com port

  3. Click on the 'Folder' option
  4. Upload the Left speaker calibration file by selecting the export file for the left monitor
  5. Upload the Right speaker calibration file by selecting the export file for the right monitor





For additional information on the calibration profile upload, visit this guide.



Are my Jones-Scanlon Studio Monitors compatible with the SoundID Reference integration?

The latest versions of Jones-Scanlon speakers purchased since Nov 05, 2021, are already shipped with a Sonarworks-compatible DSP board. You will be able to run SoundID Reference calibration on them as described in this guide.



Can I use this integration if I already own Jones-Scanlon Studio Monitors (older version)?

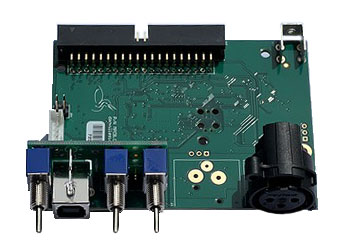

Yes, this is possible with hardware modification! If you already own Jones-Scanlon Studio Monitors purchased before Nov 05, 2021, it is possible to upgrade the DSP boards in your speaker units to be compatible with this integration. This will involve a paid hardware component upgrade on your existing Jones-Scanlon speaker units. Here's how it works:



  1. Purchase the DSP board upgrade from Wayne Jones Audio here: Jones-Scanlon DSP Upgrade Boards with SoundID integration (pair)
  2. The new DSP boards will be shipped to you
  3. Replace the boards with a simple procedure described here
  4. Proceed to set up the calibration on your speakers as shown above


If you have any additional questions, please contact Wayne Jones Audio for solutions here.
